Procurement Timeline
Confirm product name, application and target specifications first, then particle size, quantity, packing, destination and expected lead time before batch COA and order terms are reviewed.
Graphite Electrode
Own electrode line, matched electrodes and nipples, grade selected by furnace load
Specification FieldsF.C., sulfur, ash and size
Batch COAFinal specs by shipment batch
Size & PackingConfirm by application and shipment
Packing & DeliveryQuantity, packing and destination
Product Gallery
Product Gallery
Why Choose Juxing
Supply Discussion Points
Juxing Carbon manufactures graphite electrodes on our own production lines — extrusion, baking, graphitization, machining and nipple machining, all in-house.
01
Grade & Size MatchingHP (High Power) and UHP (Ultra High Power) grades available. Match electrode grade to your furnace type and current density requirements. You can trace where the specs come from.
02
Batch COA ReviewSulfur, ash, volatile matter, moisture and size should be reviewed against shipment batch COA and order confirmation.
03
Packing and DeliveryParticle size, quantity, packing method and destination should be confirmed before quotation review.
Product Showcase

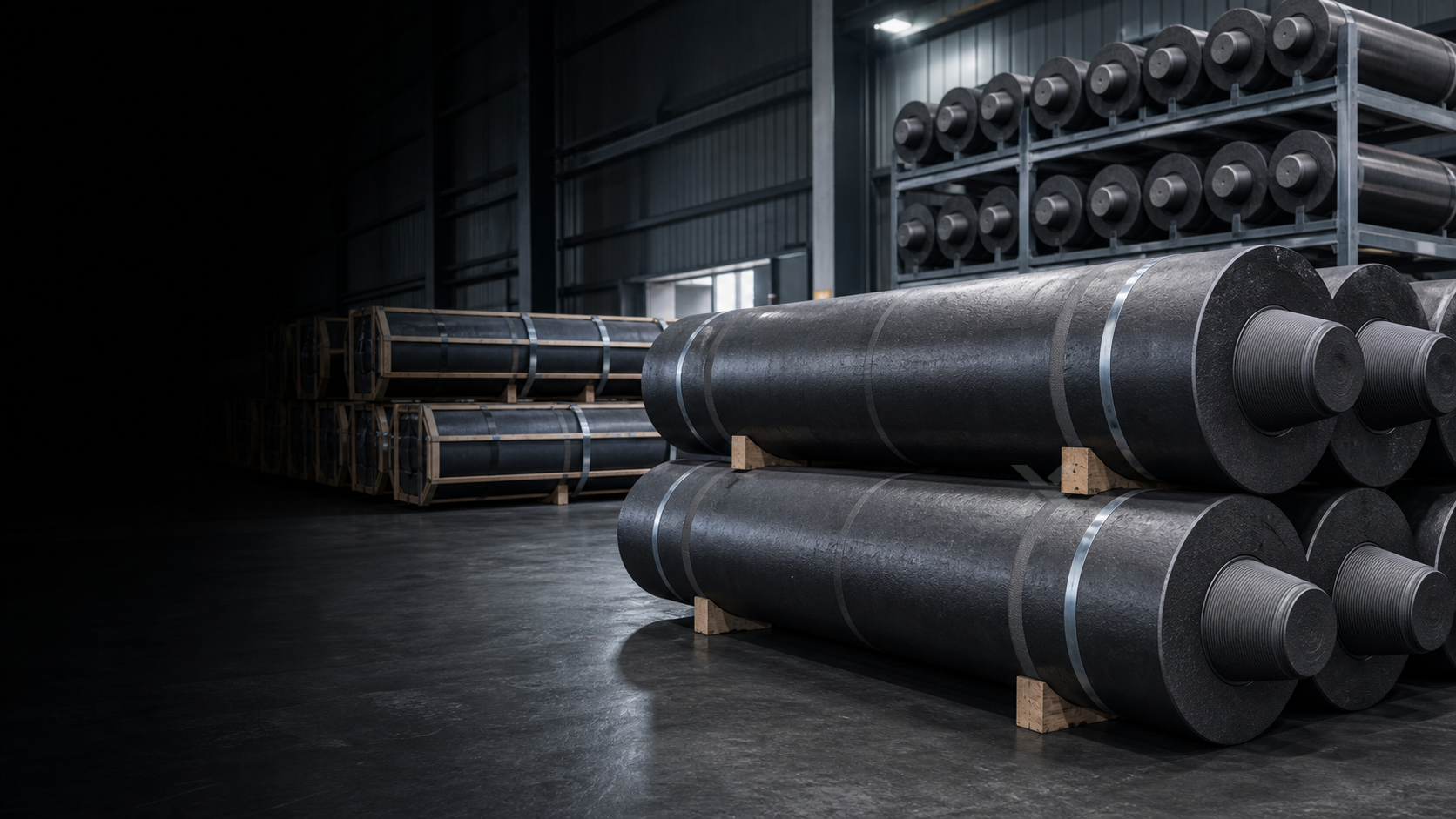

Graphite Electrode

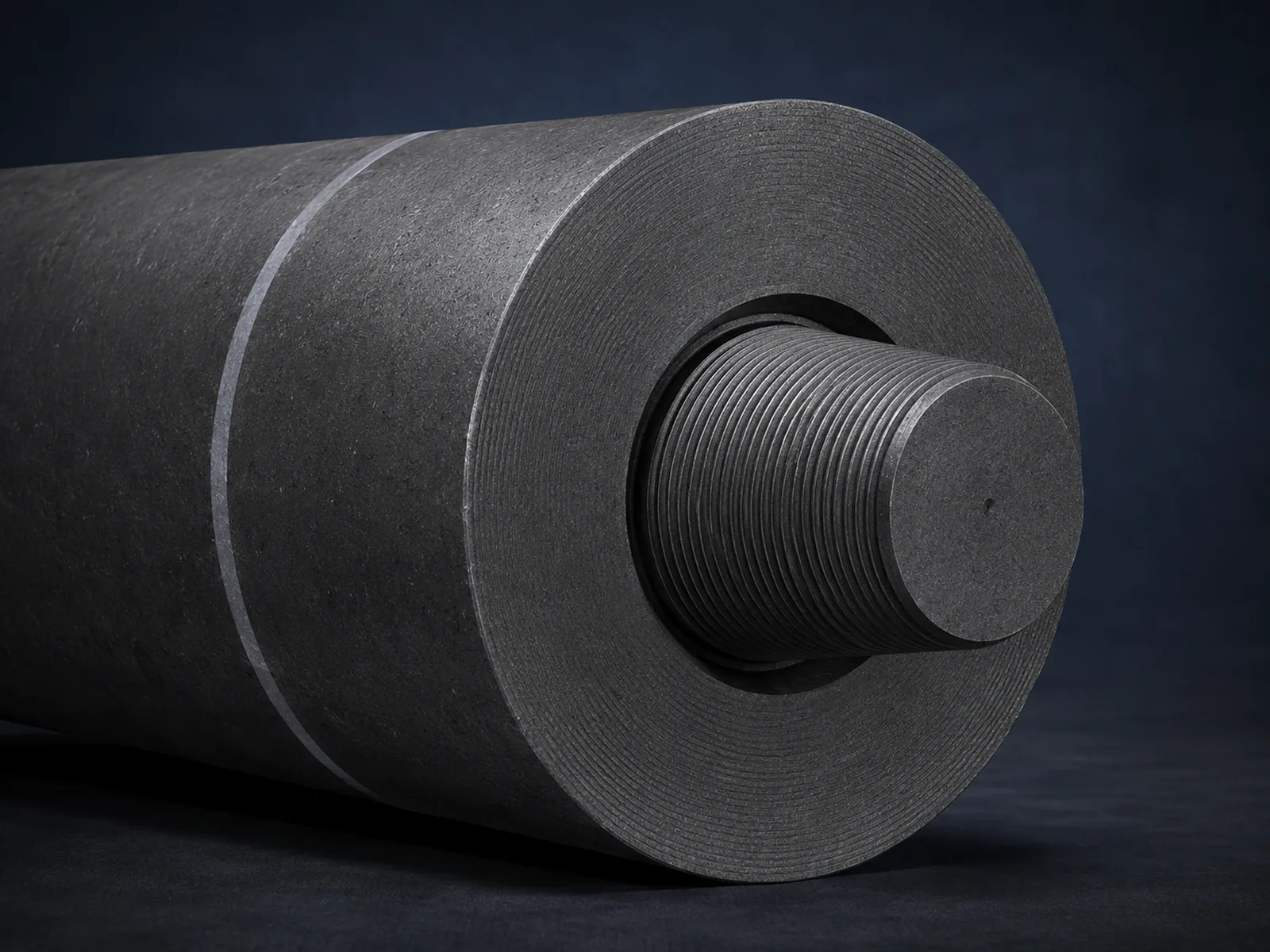

Juxing Carbon manufactures graphite electrodes on our own production lines — extrusion, baking, graphitization, machining and nipple machining, all in-house — across RP, HP, SHP and UHP grades. Electrodes and nipples are machined and supplied as matched sets.
Sizing is selected by furnace type and current load. Share electrode diameter, length, nipple type, furnace capacity and current density so the suitable power grade and specification can be matched.
For RFQ, provide: power grade (RP / HP / SHP / UHP), diameter, length, nipple model, furnace type / current load, quantity, packing and destination.
High Fixed CarbonConfirm by target specification
Size ControlConfirm size range by order
Batch COAFinal specs by shipment batch
Packing & DeliveryQuantity, packing and destination
Technical Specs
Full Specifications & Inquiry Tiers
The following are typical inquiry ranges. Final specs subject to shipment batch COA.
HP/UHP
Fixed Carbon F.C.
High carbon, low impurities, stable batch control
<0.5%
Sulfur S
Multiple tiers available to suit different needs
<0.3%
Ash
Low and stable ash, high batch consistency
≤0.5%
Moisture
Strictly controlled, minimal impact
Traceable
Batch Traceable
Batch documents for review
Diameter and grade options
Please confirm grade, diameter, length, nipple, quantity and furnace condition.
200 mm300 mm400 mm500 mm600 mm700 mmBy order
Full Technical Specifications & Testing Standards
Click to expand for detailed parameters. Final specs subject to shipment batch COA.
| Parameter | Typical Range | Notes |
|---|---|---|
| Power Grade | RP / HP / SHP / UHP | Select by furnace type and current load |
| Diameter | 200–700 mm or by order | Match furnace condition |
| Length | By order | Match operating condition |
| Nipple | Matched supply | Match electrode grade and connection |
| Application | EAF / LF / AC / DC furnace | Different furnaces require different grades |
| Packing | Wooden case / steel band fixing | Confirm by transport condition |
Applications
Typical Application Scenarios
Graphite electrodes are reviewed by furnace type, power grade, diameter, length, nipple, quantity, packing and destination.
EAF SteelmakingPrimary application for graphite electrodes
Ladle FurnaceSecondary metallurgy and refining
DC FurnaceHigh current density DC arc furnaces
AC FurnaceThree-phase AC arc furnaces
?
Submit RFQSales review by product and batch
→
Procurement Check
Procurement Timeline from Specs to Batch
Product specifications, COA fields, packing method and destination terms should be reviewed under the same batch context. Quotation and delivery remain subject to available batch and order confirmation.
Cost Comparison
Quotation factors normally include fixed carbon, sulfur, ash, sizing, packing, quantity, freight distance and batch condition. Total landed cost should not be judged by unit price alone.
Common Mistakes
Avoid sending only the product name, missing particle size or packing, or leaving application and destination unclear. Incomplete RFQs slow down specification review and batch matching.
